March 711 with Alfa Romeo engine

Miroslav Sanytrák/ Václav Král /Julius Mackerle | 13.4.05 | Historie F1 - vozy

F1 history cars

During 1971 cooling problems emerged at the already mentioned March 711, therefore parts of the bodywork were removed and the car was equipped with the alternative engine Alfa Romeo 33.3, derived from the 33 type for performance cars. Frameless body is riveted of aluminum sheets reinforced by steel and light alloy cross bars . The front oval downpressure wing is especially apparent.



increase

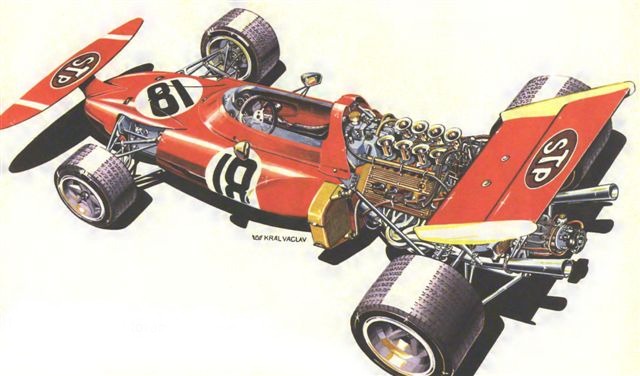

March 711 with Alfa Romeo engine

increase


increase


Photographies provided
Copyright © Vaclav Kral
Technical specification of MARCH 711- Alfa Romeo (r.1971)
Wheel base (mm) 2 438
Track (mm) 1 524
Length (mm) 3 960
Fuel tanks capacity (l) 227
Weight (kg) 580
Height (mm) 914
Alfa Romeo Engine
Layout V8 90 degrees
Bore (mm) 86
Stroke (mm) 64,8
Capacity ( ccm) 2 993
Output (HP) 430
Revolutions (rev/min) 9 800
Top speed (kph) 280
Gearbox Hewland FG 400, 5 gears
